Parameter category

Detailed parameters

Product name

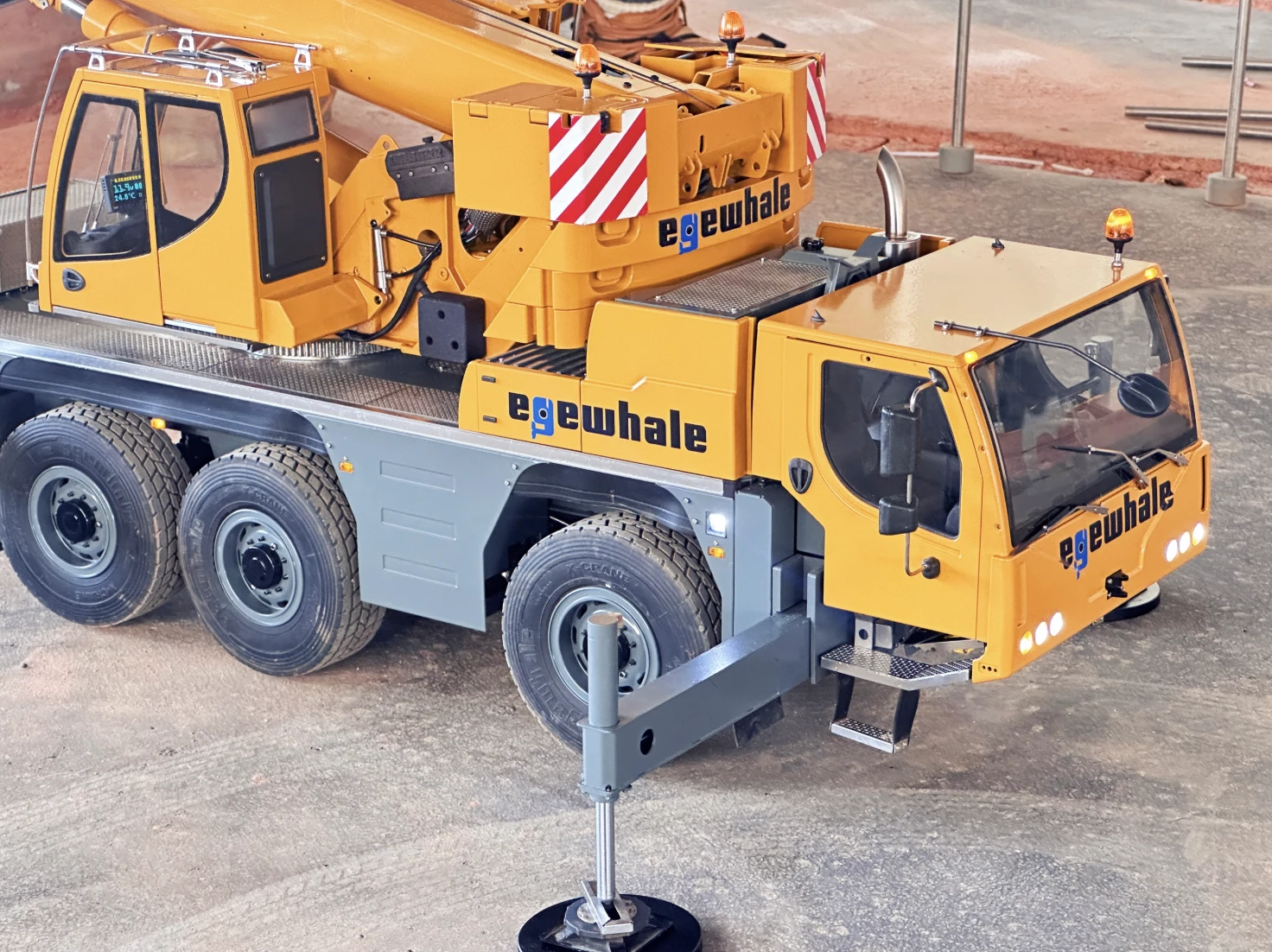

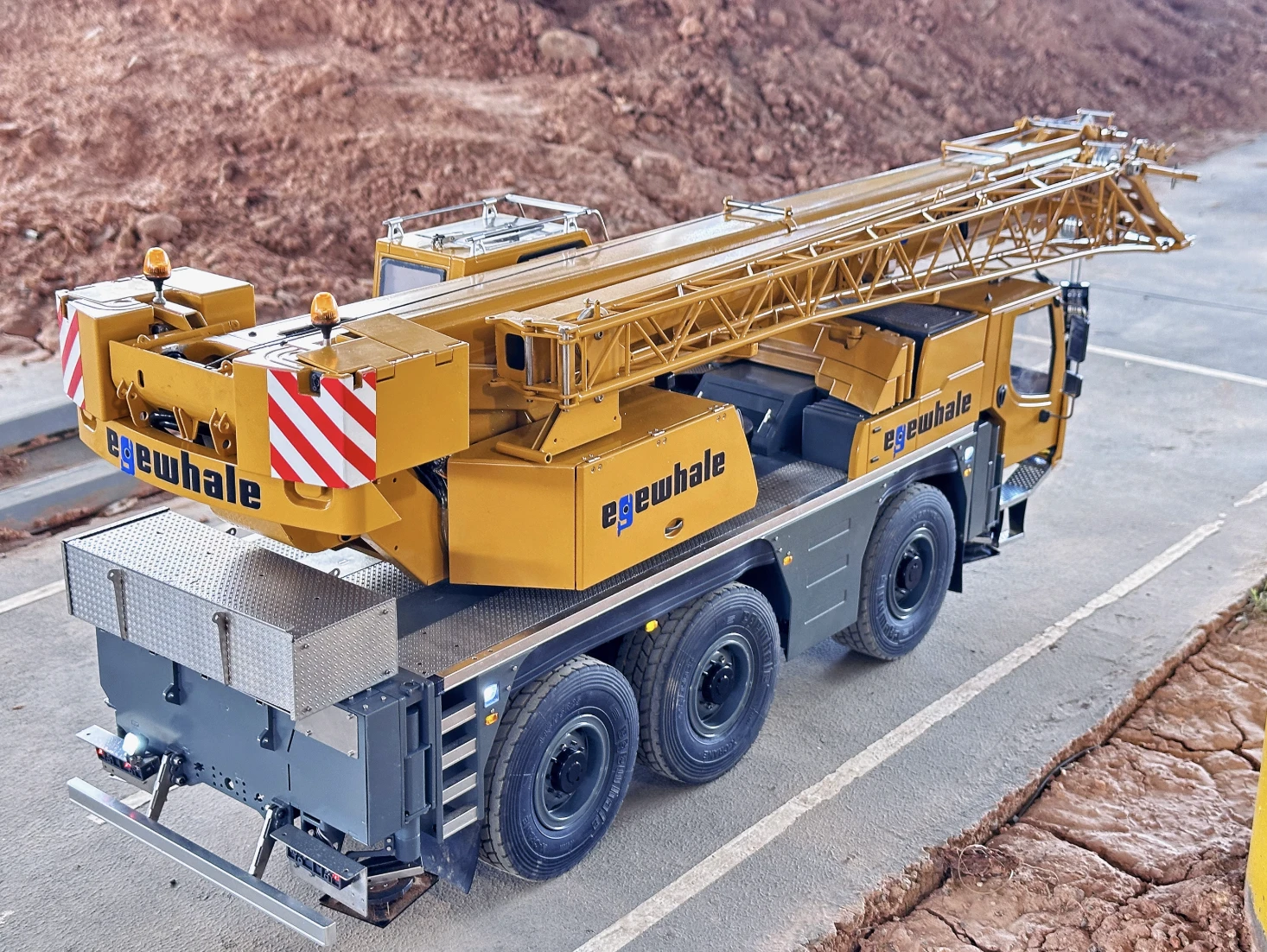

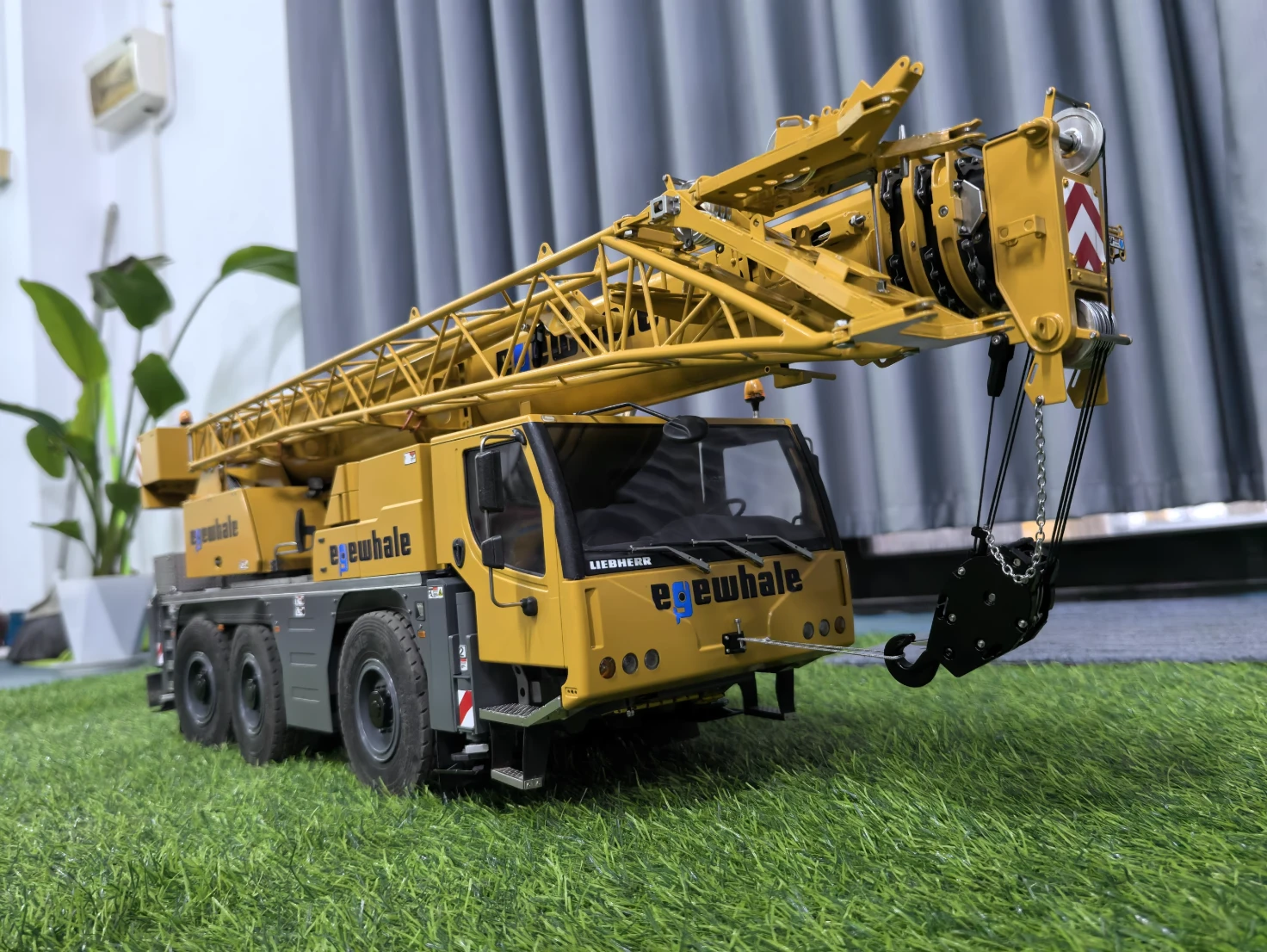

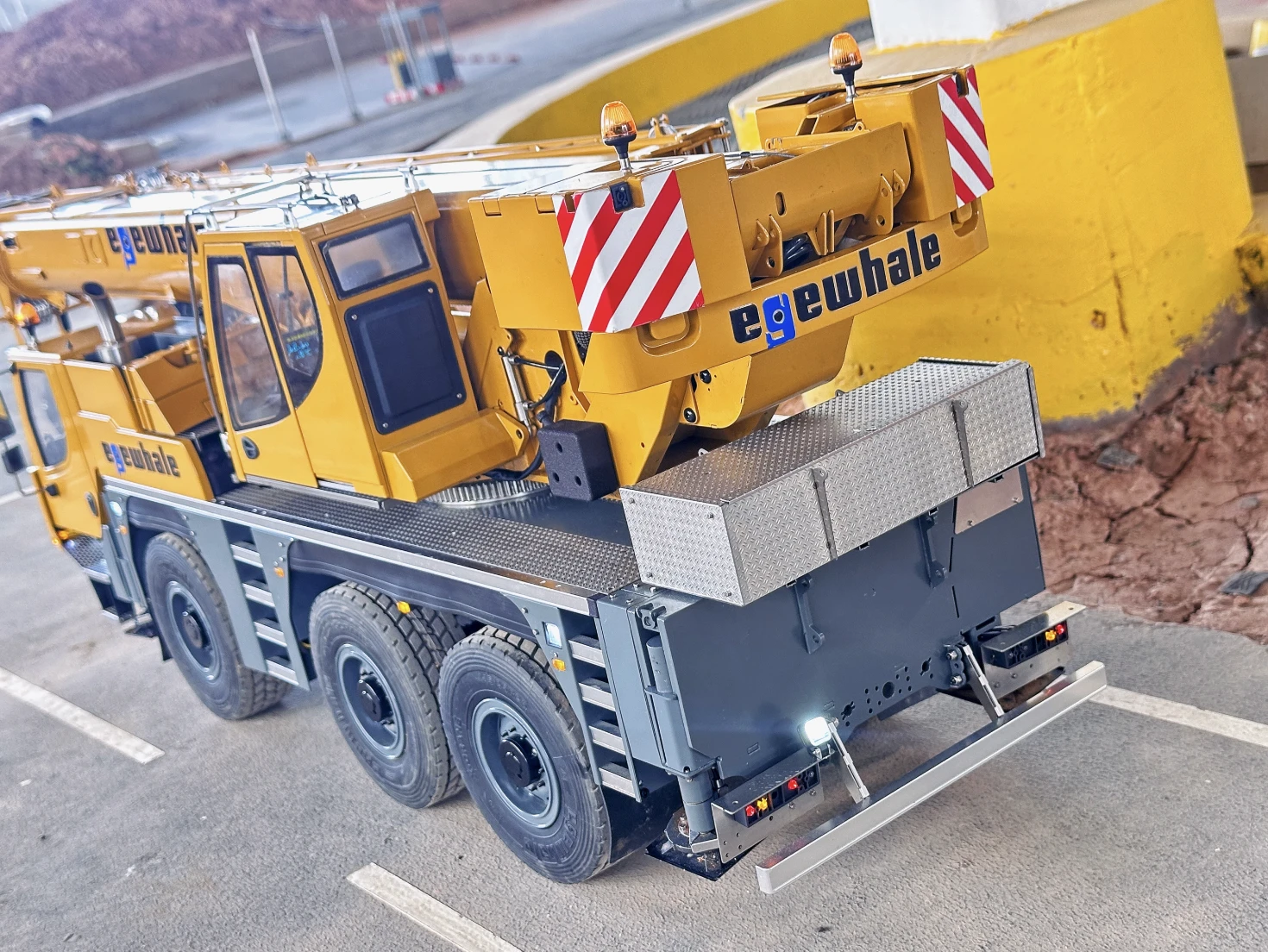

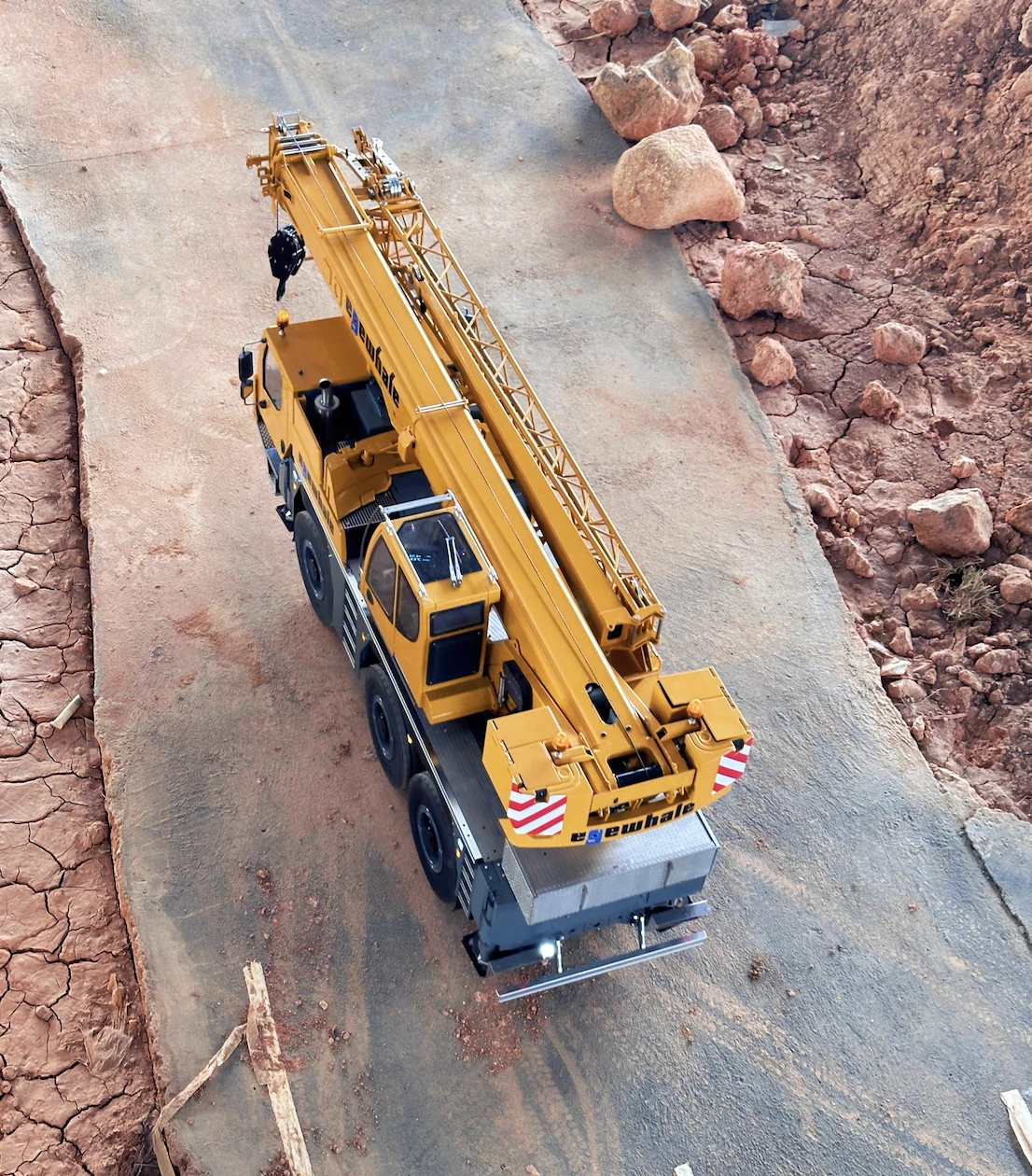

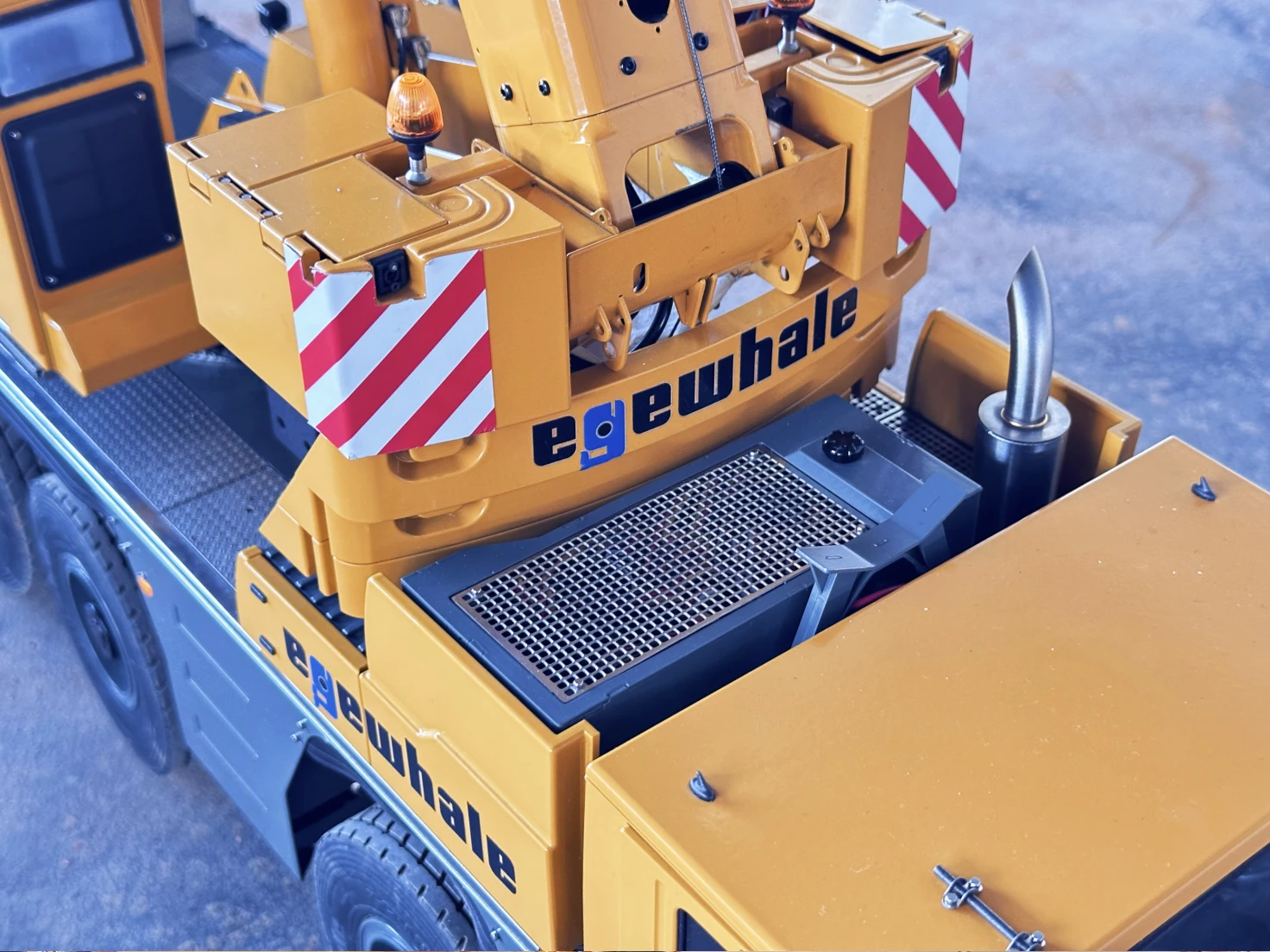

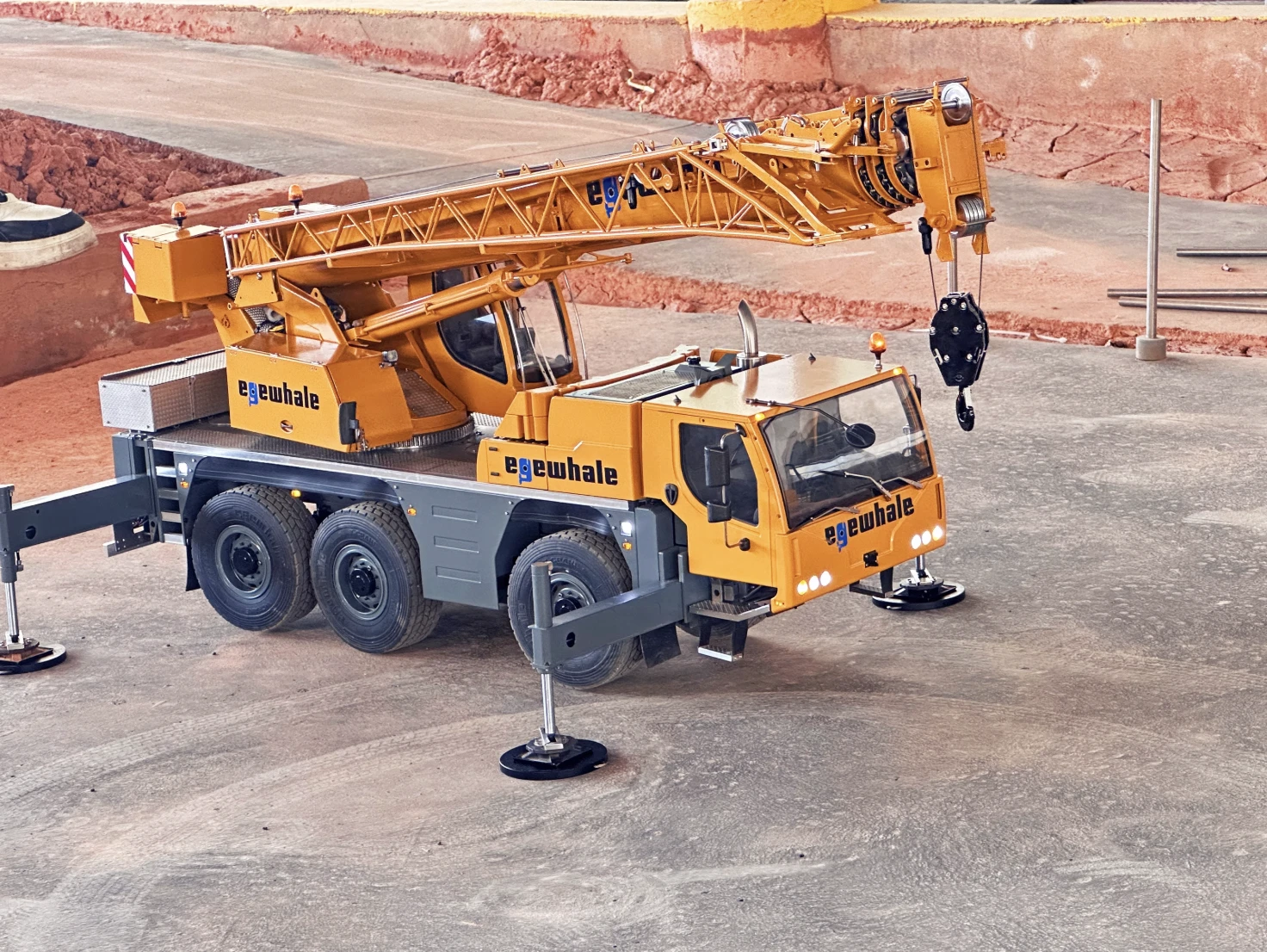

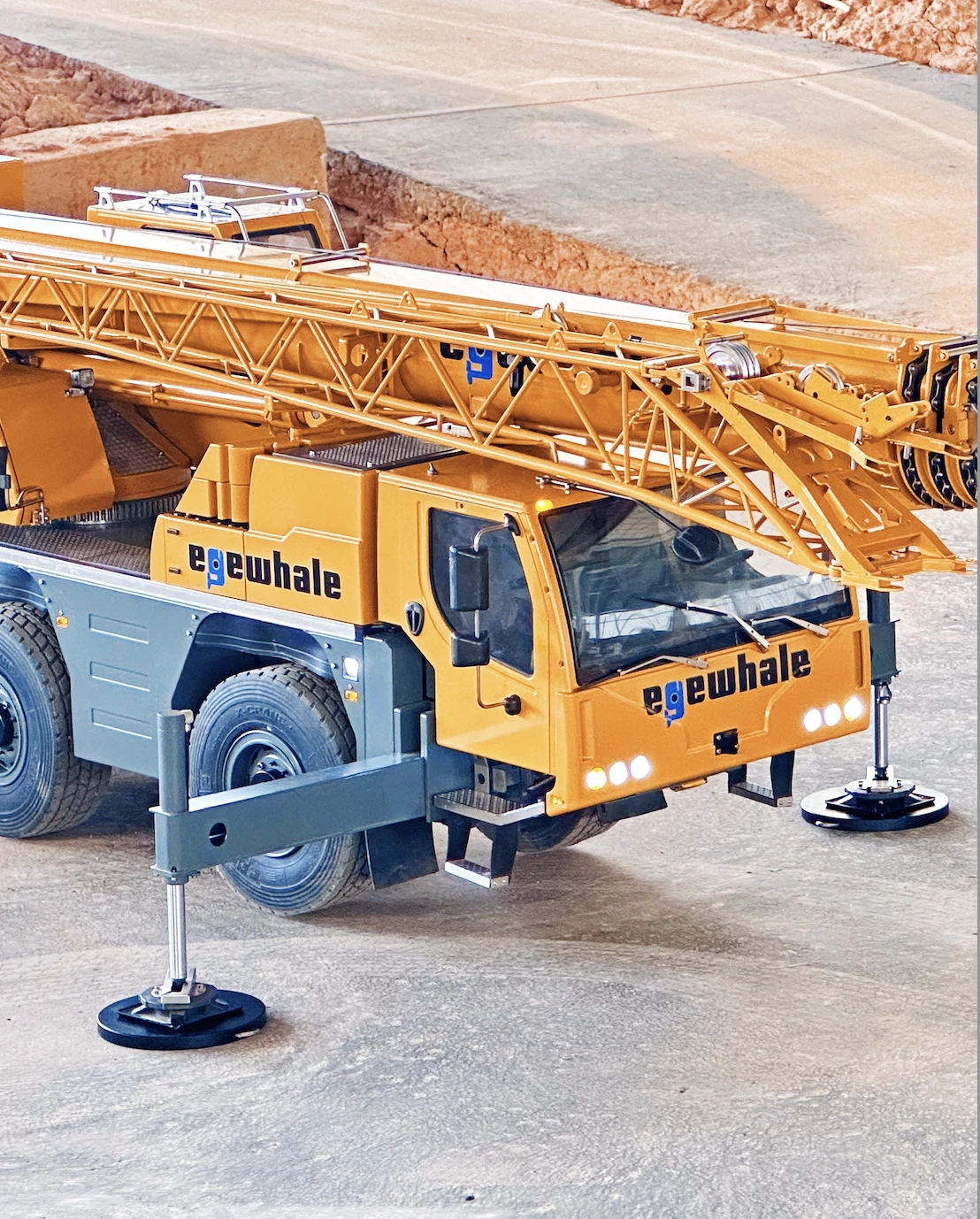

Jumujing D1050 all-terrain three-axle crane

Proportion

1:14

Prototype

LTM10503.1 crane

Craftsmanship

Stainless steel laser cutting, laser welding, CNC technology

tire

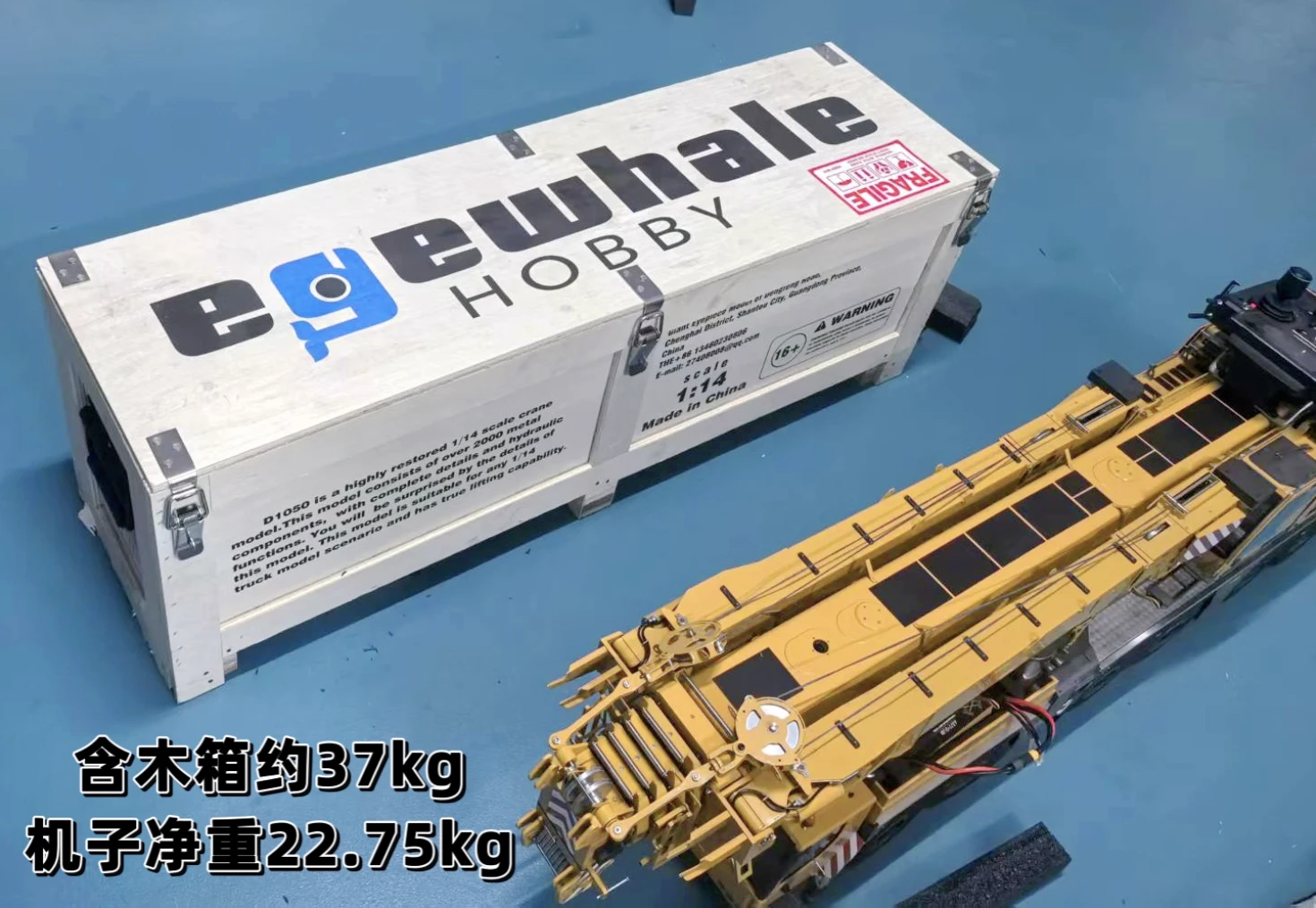

Thickened tires, supporting 22.5kg vehicle weight

Chassis

Hydraulic lift chassis, all-wheel drive, all-wheel steering, differential lock, turning radius 400mm

remote control

FS PL18EV remote control

receiver

Three 12-channel receivers (two on the chassis and one on the upper body)

Sound group & light group

Angry Bear Sound Set & Light Set

Walking ESC

Hobbywing 60A walking ESC

Motor

3060 internal rotation brushless motor plus planetary second gear gearbox

Turn to power

HobbyWin 15A UBEC switches to independent power supply

Drive & Steering

6×6×6 all-wheel drive & all-wheel steering (four steering modes)

drive shaft

Three-axis wheel reduction drive shaft (with differential & differential lock)

Hydraulic system

Hydraulic chassis lift, three-way hydraulic valves for horizontal and vertical outriggers, and four-way hydraulic valves for the upper chassis (driving pitch, boom pitch, telescopic boom, and counterweight lift).

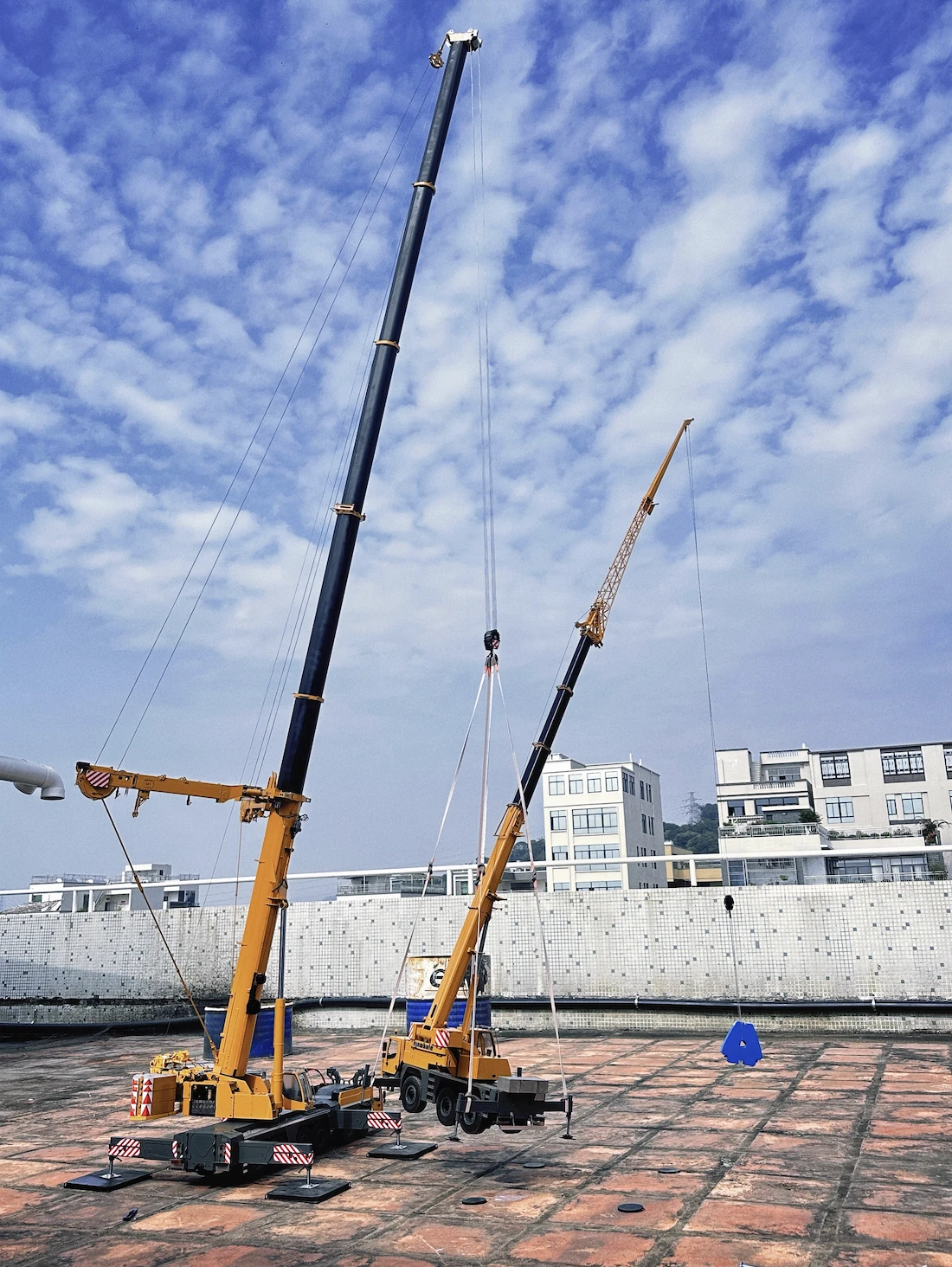

telescopic arm

Single-cylinder, rope-operated, freely retractable boom (maximum 2750mm)

Outer arm made of stainless steel, inner arm made of 7075 aluminum alloy

truss

Standard adjustable truss (up to 3800mm)

Rotary system

Brushless plus planetary reduction rotation

hoist

Brushless planetary winch

Driver's cab

screen display

ESC

Three-in-one brushless ESC (30A)
