Body Structure
Front and Rear Portal Axle Climbing
-
Body
Wheelbase
300mm
Track Width
180mm
Minimum Ground Clearance
60mm
Approach Angle
45°
Ramp Angle
134°
Departure Angle
65°
Gross Vehicle Weight (KG)
5.1Kg
Motor
Supported Motor
Factory - equipped with high - performance brushed 540 motor;Supports brushed 550 or AXIE Shankeng power kit
Motor Teeth
Factory standard 12T
Gearbox
Gearbox Type
Integrated gearbox;Integrated dual - speed and reverse integrated gearbox
Number of Gears
Two gears (dual - speed)
-
Metal Anti - splash Servo
Steering System
Multi - link Steering System
Multi - link steering:Full metal CNC processing
Steering Arm
25T
Steering Mode
Servo Pull Rod Type;30Kg full metal splash - proof servo
Body Structure
Chassis Rail
1.5mm CNC aluminum chassis rail
Driving Mode
Full - time four - wheel drive;Equipped with front and rear axle differential locks
Suspension Type
Steel tie rod
Transmission System
Full metal gear
Front Shock Absorber Type
65mm shock absorber;Spring + shock absorber structure
Rear Shock Absorber Type
75mm shock absorber;Spring + shock absorber structure
Drive Shaft
Full metal 5mm universal joint (304 material)
Axle
Portal axle (supports remote control differential lock);Full aluminum high - precision CNC process portal axle
Body Simulation
Front bumper,three - side opening wooden bucket,simulation rearview mirror,chimney,wading throat,wiper,door handle,simulation interior,etc.
Wheel Specification
1.9 inches:CNC metal wheel hub
Tire
Herringbone pattern,diameter 115mm,width 40mm
Accessories
Simulation metal fuel tank (refillable),metal foot ladder,radiator,tool box,urea tank,etc.
Electronics
Remote Control
LDARC - CT01 eight - channel lithium battery remote control
ESC
Haoying 1060 customized fully waterproof ESC
Motor
High - performance customized brushed 540 motor
Steering Servo
30KG full metal customized servo
Category
Item
Specification
Manufacturer
Lechuang Technology (abbreviated as LCC)
-
Model Name
LCC - 001
-
Scale
1:10
-
Type
Simulation Climbing Vehicle (Engineering Vehicle)
-
Battery
Supports 2 - 3S lithium batteries
-
Battery Size
Maximum support for 140mm×45mm×30mm size battery
-
Length,Width and Height
510×220×300mm
-
Functional Servo
1.5KG small customized servo
※Light Kit(Optional)
Simulation light kit:LED particle light kit +reversing horn (combination)

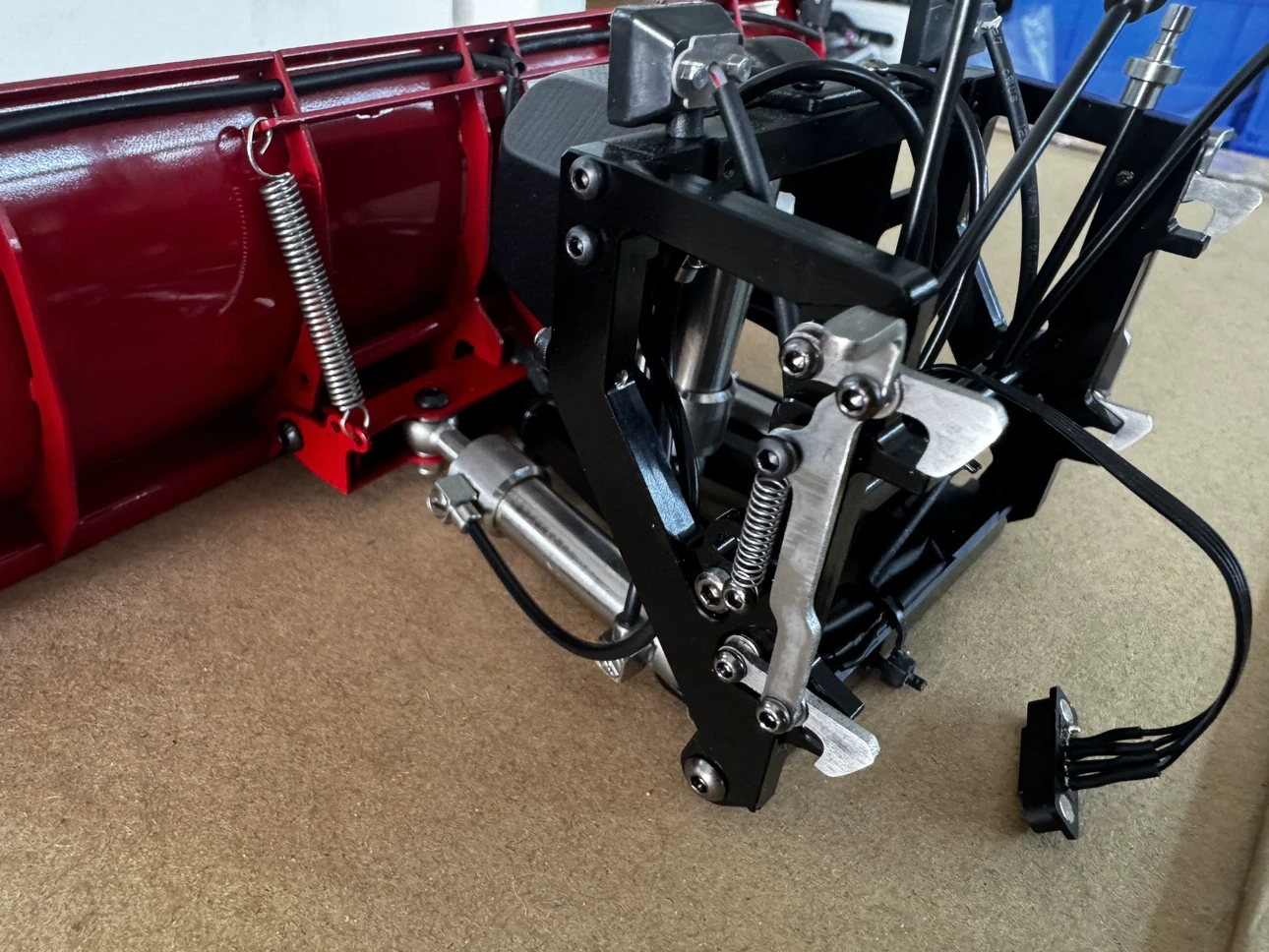

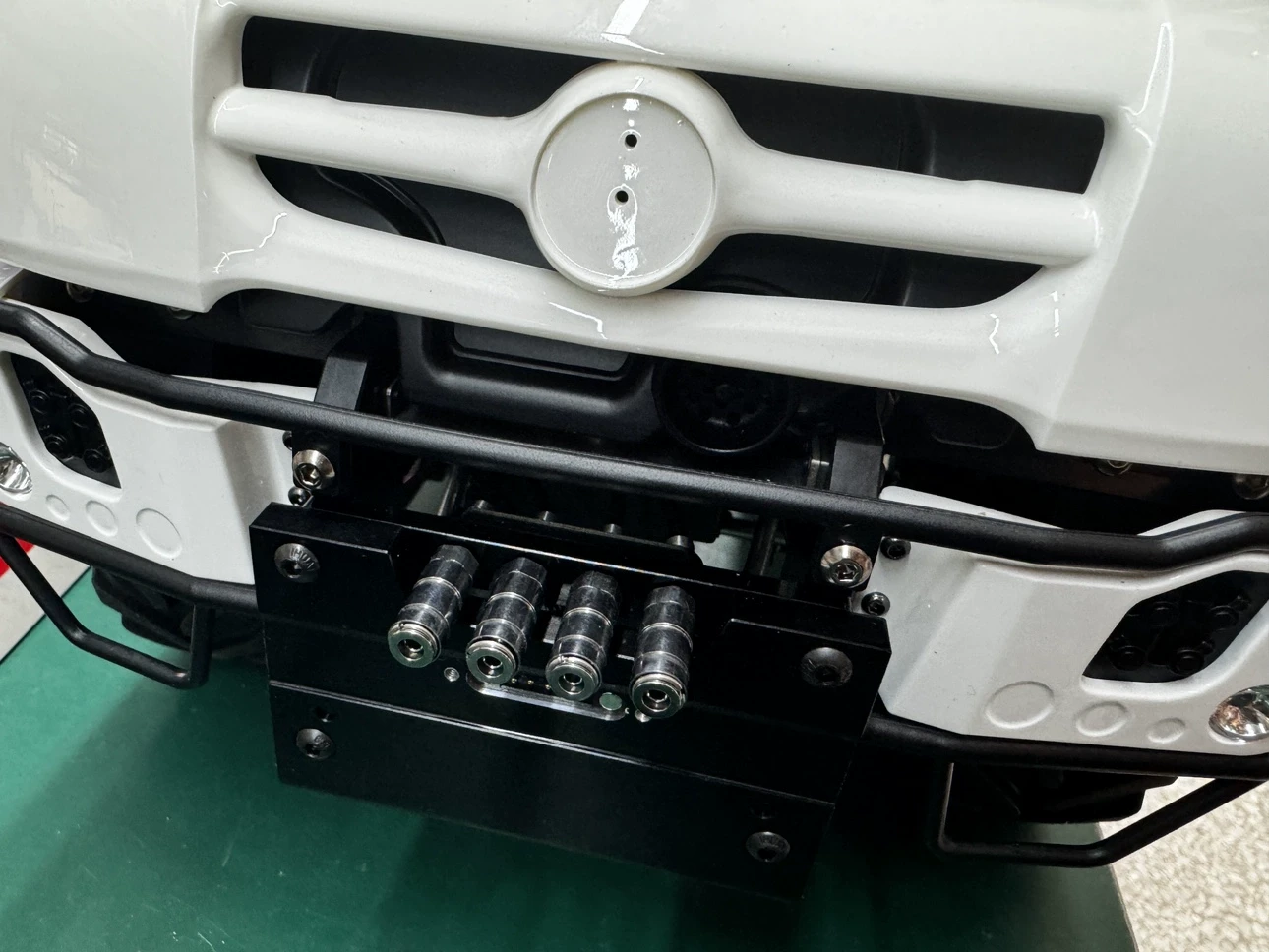

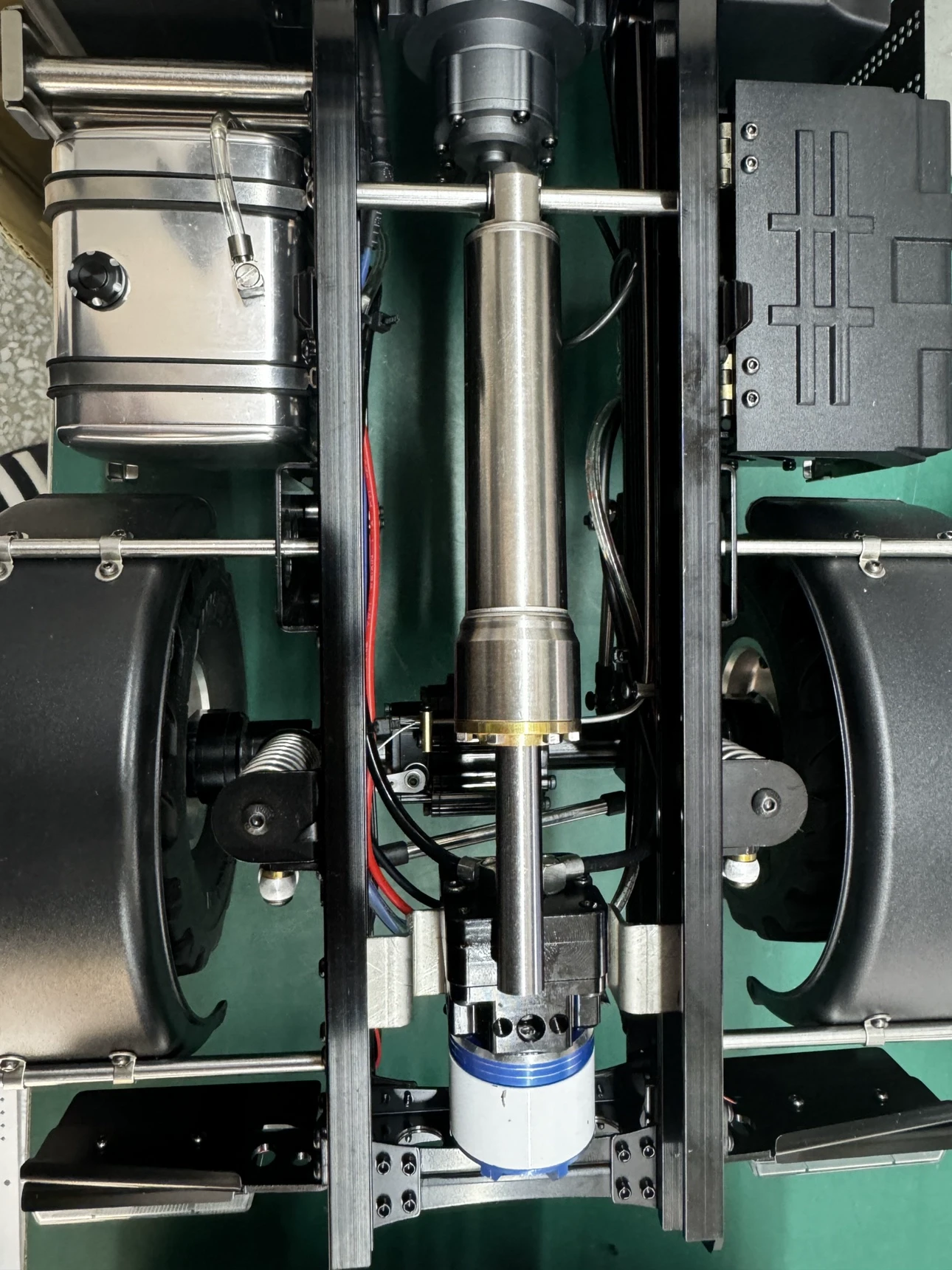

A new hydraulic upgrade kit is now available. Inquiries welcome! The hydraulic kit includes: a three-way oil pump, a front and rear bucket hydraulic kit, and a front and rear bucket hydraulic kit. It also features up and down movement for the front and rear buckets. Features include: a metal bucket, silent operation, lights, and sound system.
Product specifications

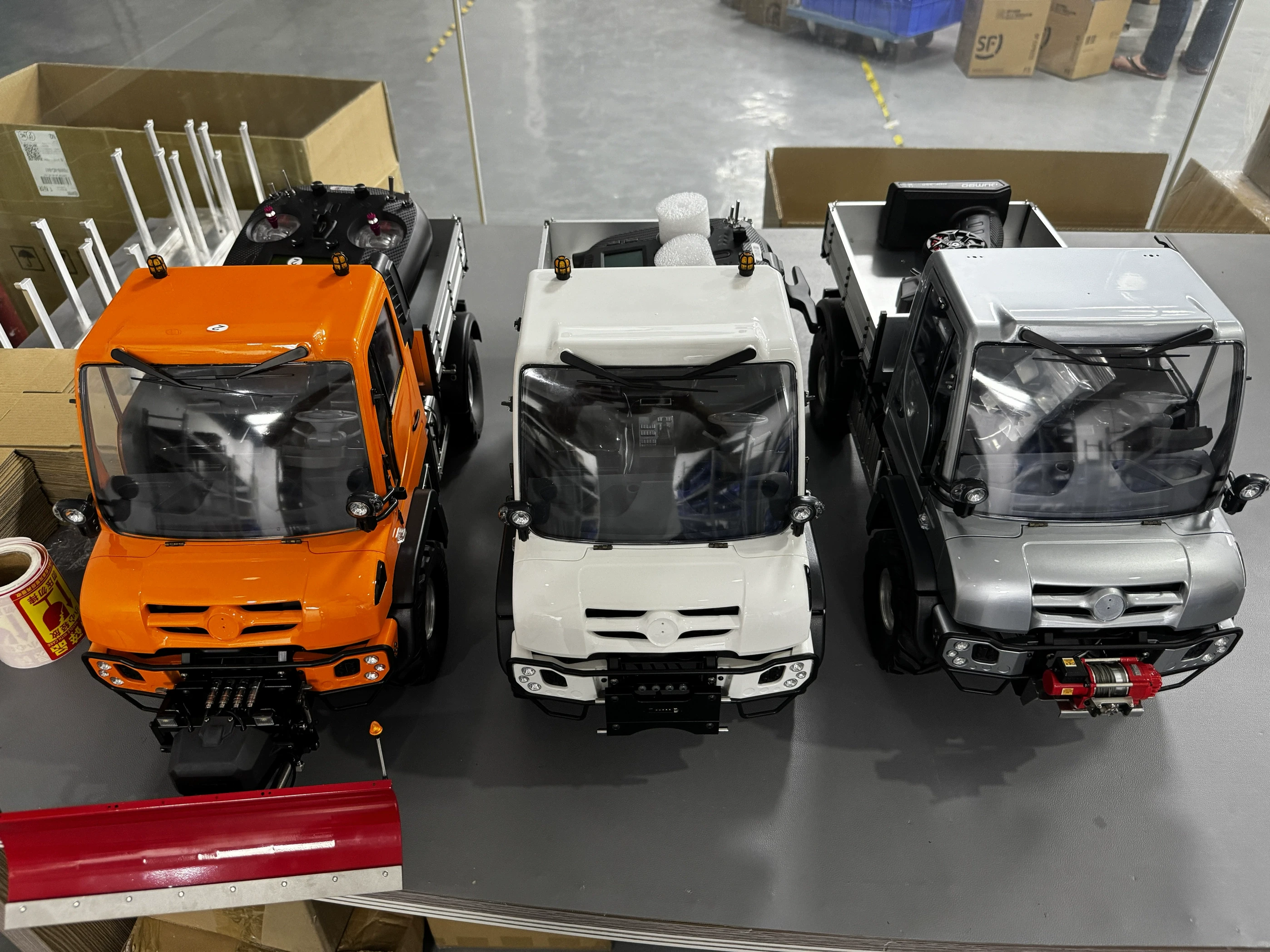

Orange high-end version
White high-end version
High-end version: metal bucket with sound and light group, car body color optional
Hydraulic front shovel, painted rear bucket, metal exhaust version
